Traction ratio: 2:1
Rated capacity: 400、630、800、1000、1350、1600kg
Rated elevator speed: 0.63、1、1.6、1.75m/s
Max. shaft load: 5000kg
Applicable converter: 3 phase 400V
Brake voltage: DC200V for Brake opening,
and DC100V for brake holding
Number of motor poles: 32 poles

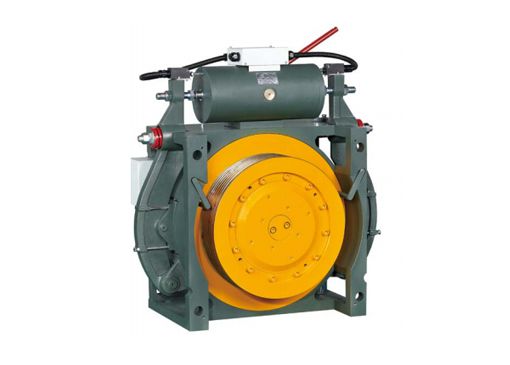

This series of permanent-magnet synchronous gearless traction machines is directly driven by a low-speed, high-torque, 3-phase permanent magnet synchronous motor, and has the advantages of low energy consumption, low noises, no pollution, and little maintenance.

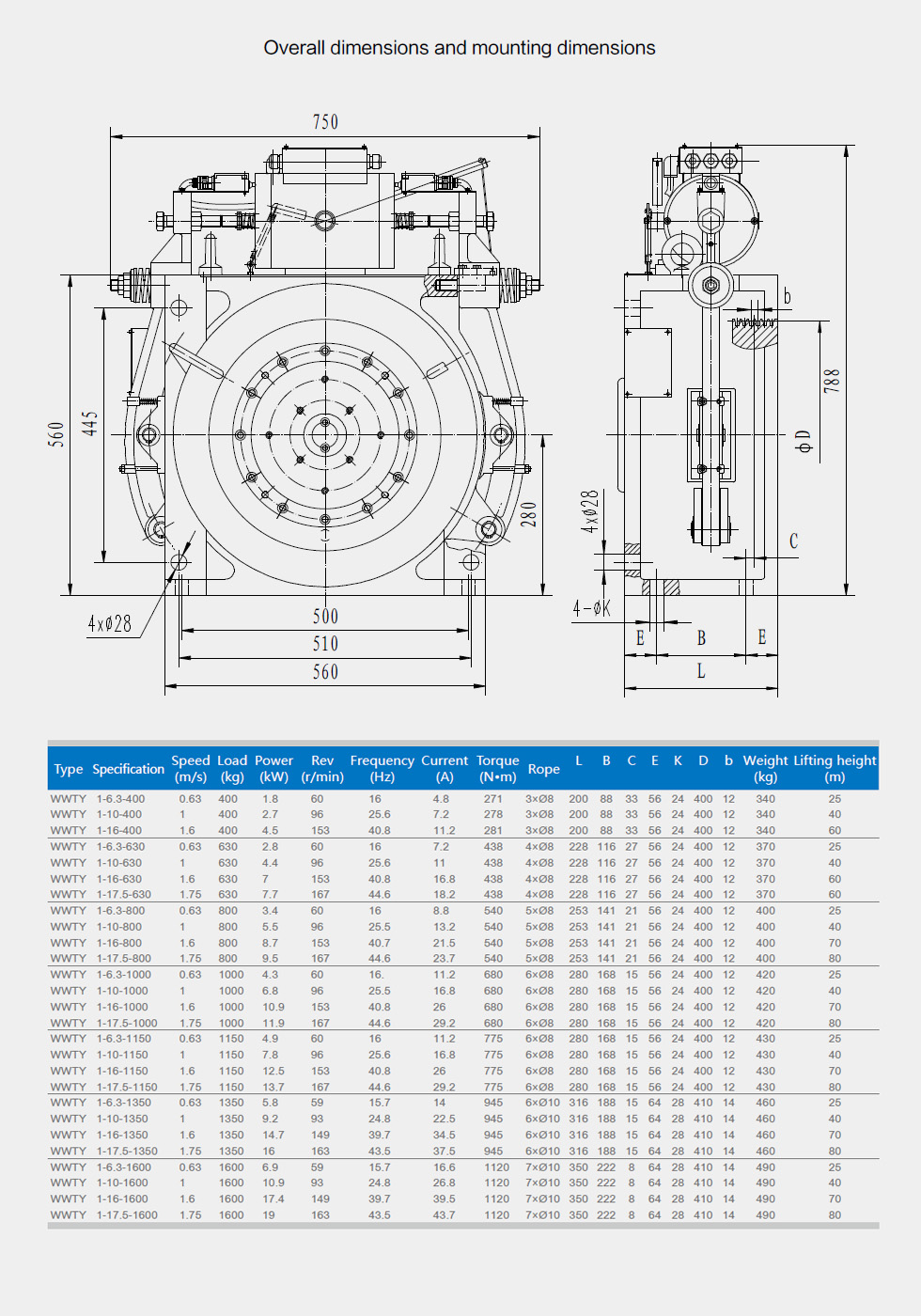

By using flat frame structure with three mounting surfaces, this series of traction machines can be installed on bottom floor or any middle positions or on the top of shaft way.
These traction machines can be arranged for providing upward traction or downward traction, and have remote manual brake release function. Wrap angle of the traction machines can be only 180°
